Konfigurasi RIP pada Cisco Packet Tracer


Sebelum kita memulai konfigurasi,
Pertama kita buat sebuah jaringan sederhana...
seperti yang ada di bawah ini...



Kedua Pemberian IP Address pada masing-masing PC yang terhubung..


Pemberian IP address pada 'PC0'



Pemberian IP address pada 'PC1'

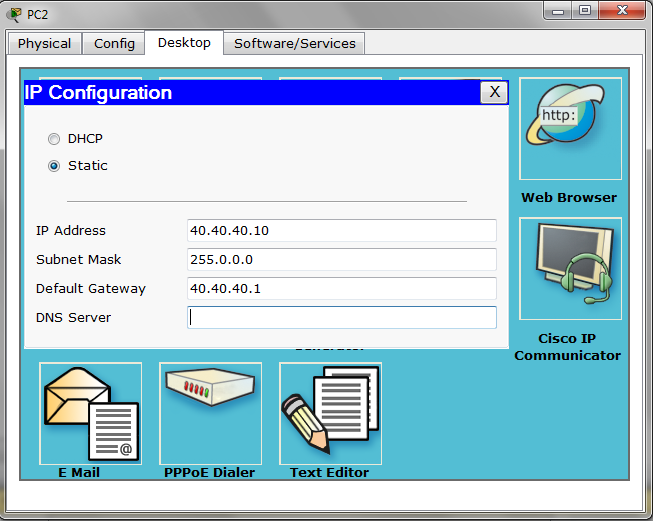

 Pemberian IP address pada 'PC2'



Pemberian IP address di Router0

     --- System Configuration Dialog ---

Continue with configuration dialog? [yes/no]: no


Press RETURN to get started!



Router>enable
Router#configure terminal
Enter configuration commands, one per line.  End with CNTL/Z.
Router(config)#int fa0/0
Router(config-if)#ip add 20.20.20.1 255.0.0.0
Router(config-if)#no shut

Router(config-if)#
%LINK-5-CHANGED: Interface FastEthernet0/0, changed state to up

%LINEPROTO-5-UPDOWN: Line protocol on Interface FastEthernet0/0, changed state to up

Router(config-if)#exit
Router(config)#int se2/0
Router(config-if)#ip add 172.16.20.1 255.255.0.0
Router(config-if)#band 64
Router(config-if)#cl ra 64000
Router(config-if)#no shut

%LINK-5-CHANGED: Interface Serial2/0, changed state to down
Router(config-if)#exit

Konfigurasi RIP di Router0


Router(config)#router eigrp 9
Router(config-router)#net 20.20.20.1
Router(config-router)#net 172.16.20.1
 Router(config-router)#exit
Router#
%SYS-5-CONFIG_I: Configured from console by console
wr
Building configuration...
[OK]
Router#


Pemberian IP address di Router1


  --- System Configuration Dialog ---

Continue with configuration dialog? [yes/no]: no


Press RETURN to get started!



Router>enable
Router#configure terminal
Enter configuration commands, one per line.  End with CNTL/Z.
Router(config)#int fa0/0
Router(config-if)#ip add 30.30.30.1 255.0.0.0
Router(config-if)#no shut

Router(config-if)#
%LINK-5-CHANGED: Interface FastEthernet0/0, changed state to up

%LINEPROTO-5-UPDOWN: Line protocol on Interface FastEthernet0/0, changed state to up

Router(config-if)#exit
Router(config)#int se2/0
Router(config-if)#ip add 172.16.20.2 255.255.0.0
Router(config-if)#band 64
Router(config-if)#no shut

%LINK-5-CHANGED: Interface Serial2/0, changed state to down
Router(config-if)#exit

Router(config-if)#exit
Router(config)#int se3/0
Router(config-if)#ip add 192.168.20.1 255.255.255.0
Router(config-if)#band 64
Router(config-if)#cl ra 64000
Router(config-if)#no shut

%LINK-5-CHANGED: Interface Serial3/0, changed state to down
Router(config-if)#exit


Konfigurasi RIP di Router1
Router(config)#router eigrp 9
Router(config-router)#net 30.30.30.1
Router(config-router)#net 172.16.20.2
Router(config-router)#net 192.168.20.1
Router(config-router)#exit
Router#
%SYS-5-CONFIG_I: Configured from console by console
wr
Building configuration...
[OK]
Router#




Pemberian IP address di Router2


     --- System Configuration Dialog ---

Continue with configuration dialog? [yes/no]: no


Press RETURN to get started!



Router>enable
Router#configure terminal
Enter configuration commands, one per line.  End with CNTL/Z.
Router(config)#int fa0/0
Router(config-if)#ip add 40.40.40.1 255.0.0.0
Router(config-if)#no shut

Router(config-if)#
%LINK-5-CHANGED: Interface FastEthernet0/0, changed state to up

%LINEPROTO-5-UPDOWN: Line protocol on Interface FastEthernet0/0, changed state to up

Router(config-if)#exit
Router(config)#int se2/0
Router(config-if)#ip add 192.168.20.2 255.255.255.0
Router(config-if)#band 64
Router(config-if)#no shut

%LINK-5-CHANGED: Interface Serial2/0, changed state to down
Router(config-if)#exit




Konfigurasi RIP di Router0

Router(config)#router eigrp 9
Router(config-router)#net 40.40.40.1
Router(config-router)#net 192.168.20.2
Router(config-router)#exit
Router#
%SYS-5-CONFIG_I: Configured from console by console
wr
Building configuration...
[OK]
Router#



Setelah dikonfigurasi, coba di ping dari PC0 ke PC1 atau PC2 dan sebaliknya...


SILAHKAN MENCOBA...
